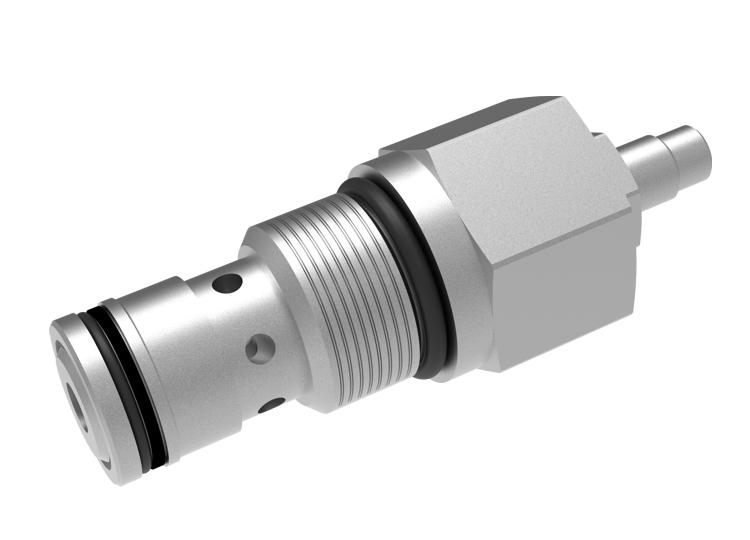

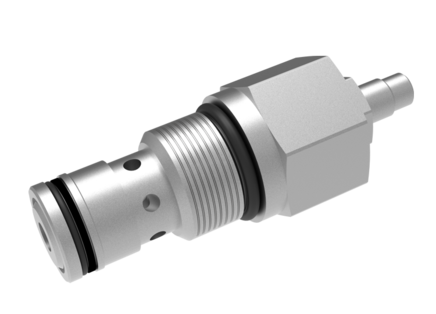

2-Way Flow Regulator with Reverse Flow Check, Pressure Compensated
SF2C2A-K2/l
M27x2 • Qmax 60 l/min (16 GPM) • pmax 350 bar (5100 PSI)
- Set flow rate independent of load pressure and temperature changes
- Adjusted flow rate depends on the orifice area and adjusted differential pressure
- Integrated reverse flow check valve
- Hardened precision parts
- High flow capacity
- Quiet and modulated response to load changes
- Used in meter-in, meter out or bleed-off applications
- Wide range of flow rate options
- In the standard version, the valve is zinc-coated (240 h corrosion protection in NSS acc. to ISO 9227)
Specifications
- Type
- Q max. l/min (GPM)
- P max. bar (PSI)
- Connection
- Data sheet
- Download
-
Type
-
Q max. l/min (GPM)60 (16)
-
P max. bar (PSI)350 (5076)
-
ConnectionM27x2
-
Data sheetHA 5236
-
