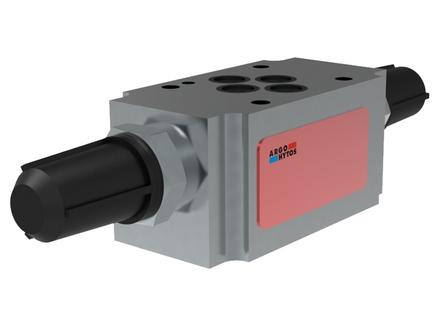

Restrictor Valve with Reverse Flow Check, Modular
2VS3-06
Size 06 (D03) • Qmax 80 l/min (21 GPM) • pmax 320 bar (4600 PSI)
- Restrictor valve with reverse flow check, mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
- Meter-in or meter-out flow control
- Leak-free closing in one or two service ports
- Linear adjustment and positive seat overlap
- Desired settings may be locked down
- Optionally adjustable by allen key with protective cap, or by hand screw
- In the standard version, the sandwich plate of valve is phosphated for basic surface corrosion protection and as preparation for painting. Steel parts are zinc-coated for corrosion protection 240 h in NSS acc. to ISO 9227
- Enhanced surface protection for mobile applications is available. The sandwich plate and steel parts are zinc-coated with corrosion protection 520 h in NSS
Specifications
- Type
- Q max. l/min (GPM)
- P max. bar (PSI)
- Connection
- Data sheet
- Download
-
Type
-
Q max. l/min (GPM)80 (21)
-
P max. bar (PSI)320 (4641)
-
ConnectionDN06 (D03)
-
Data sheetHA 5051
-
