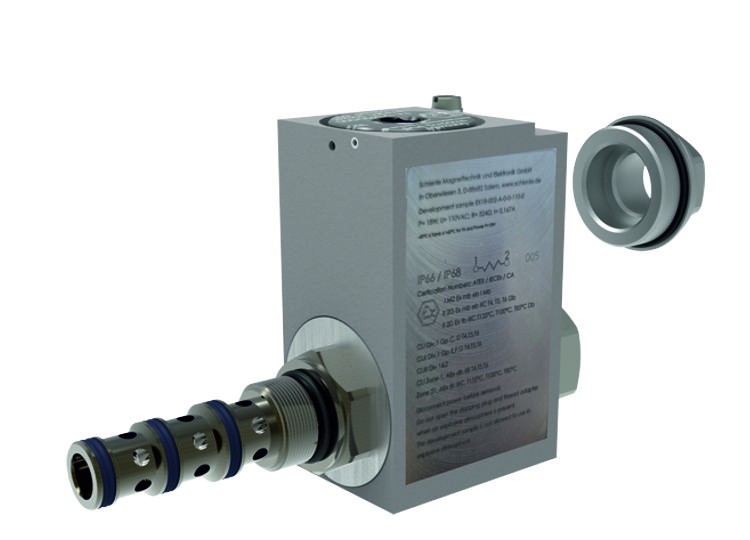

SD2P2X-B4

7/8-14 UNF • Q_max 25 l/min (7 GPM) • p_max 250 bar (3630 PSI)

• 4/2-screw-in cartridge proportional directional control valve, spool type, with 7/8-14 UNF connection thread
• Maximum operating pressure 250 bar (P, A, B ports) and 100 bar (T port)
• Certification of solenoid coil ATEX (Directive 2014/34/EU) and IECEx, valid for mines and environments with potentially explosive atmospheres consisting of gases or dust
• Coil certification “FM APPROVED” valid for USA and Canada
• Coil protection by flameproof enclosure “d” / “t” (for dust)
• Robust design resistant to mechanical damage
• Protection against static discharge by grounding the valve surface
• Valves applicable for temperature classes T4 (135 °C) depending on maximum ambient temperature
• Easily interchangeable direction of power cable entry (axial/radial) into the coil
• Optional coil supply voltage (12 / 24 V DC)
• The valve is zinc coated for 520 h corrosion protection in NSS acc. to ISO 9227 and as protection against ignition spark in the event of mechanical impact
